WebRTC vs WebSockets: A Comparison for Real-Time Communication

Introduction

In today's digital landscape, real-time communication (RTC) is everywhere, from video calls and online gaming to live chat and collaborative work environments. Powering these experiences are technologies like Web Real-Time Communication (WebRTC) and WebSockets. While often mentioned in the same breath, they serve distinct purposes and are designed for different scenarios. Understanding their fundamental differences is key to building efficient and effective real-time applications.

This post will delve into what WebRTC and WebSockets are, explore their primary uses, explain when to choose one over the other, highlight scenarios where they excel, and provide some basic JavaScript code examples.

What is WebRTC?

WebRTC (Web Real-Time Communication) is both an open-source project and specification that enables real-time media communications like voice, video, and data transfer natively between browsers and devices. It provides users with the ability to communicate from within their primary web browser without needing complicated plug-ins or additional hardware.

First announced by Google in May 2011, WebRTC aimed to develop a common set of protocols for enabling high-quality RTC applications within browsers, mobile platforms, and IoT devices. At the time, Flash and plug-ins were the only methods of offering real-time communication. The WebRTC protocol was standardized in 2011 via RFC 6455.

At its core, WebRTC facilitates direct peer-to-peer (P2P) connections between devices. This means that once a connection is established, media and data can flow directly between the participants without needing an intermediary server to relay the content itself. This is a major benefit for reducing latency and server load for media-heavy applications.

Key WebRTC APIs Explained:

The WebRTC standard includes several interrelated APIs that work together. The sources highlight three primary components:

• MediaStream (GetUserMedia): This API provides a way to access device cameras and microphones using JavaScript. It controls where multimedia stream data is consumed and provides some control over the devices that produce the media. Using the getUserMedia() method, applications can request permission from the user to access their audio and/or video devices.
• RTCPeerConnection: This is considered the core of the WebRTC standard. It provides a way for participants to create direct connections with their peers. The RTCPeerConnection API handles a lot of complexity behind the scenes, including Session Description Protocol (SDP) negotiation, codec implementations, NAT Traversal (using technologies like STUN and TURN), packet loss, bandwidth management, and media transfer. It is what deals with connecting two applications on different computers to communicate using a P2P protocol.
• RTCDataChannel: This API allows developers to exchange arbitrary binary data between two peers over a peer connection. The API is intentionally similar to the WebSocket API. It uses the Stream Control Transmission Protocol (SCTP) as a way to send data on top of an existing peer connection. Data channels can be used for various purposes, such as back-channel information, metadata exchange, game status packets, or file transfers.

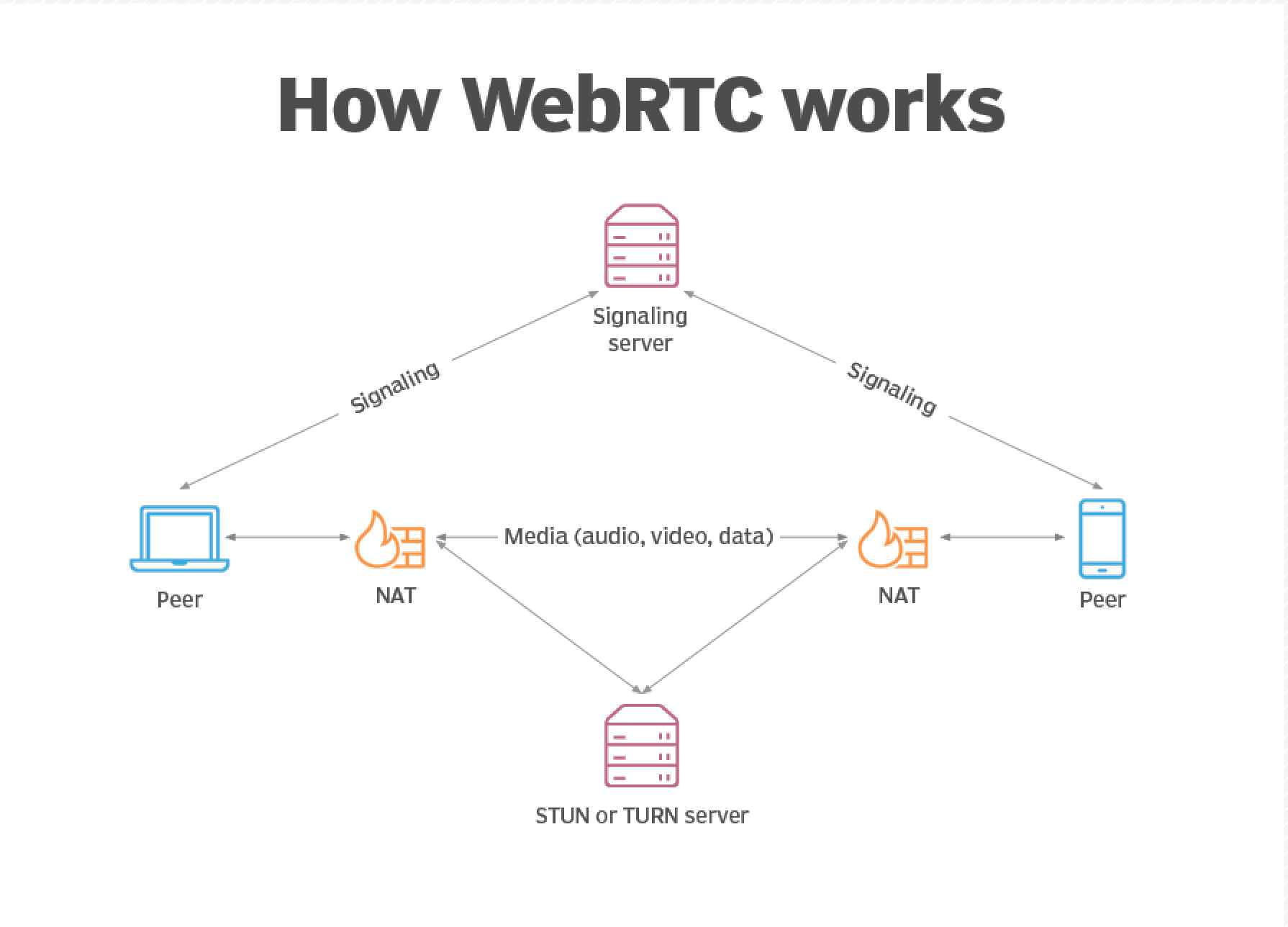

How WebRTC Works:

WebRTC embeds real-time communications technologies within web browsers using JavaScript, APIs, and HTML. Before audio and video files are sent, they must be compressed due to their large size, and media received over a peer-to-peer connection must be decompressed. WebRTC uses a codec process for this.

A crucial point is that while WebRTC enables P2P connections for media and data transfer, it still requires servers for certain functions. Specifically, WebRTC itself does not define a signaling protocol. Signaling is the process of transferring information between peers to coordinate communication, including network data, session control messages, and media metadata. This is necessary to allow devices that wish to communicate to locate one another and exchange metadata to set up the peer connection. This signaling is typically handled by a separate server using other technologies, and as we'll see, WebSockets are a popular choice for this.

WebRTC Use Cases:

WebRTC has broad applicability. Common use cases mentioned in the sources include:

• Video Conferencing and Voice Calling: Allowing high-quality, real-time communication directly from browsers without plugins. Used by products like Microsoft Teams, Skype, Slack, and Google Meet.
• Live Streaming and Broadcasting: Delivering sub-second latency broadcasts to large audiences when combined with efficient server scaling and intelligently designed Media Server clusters.
• File Sharing: Enabling efficient and secure file sharing between users via the RTC Data Channel feature.
• Screen Sharing: A common feature in online meetings and collaborative environments.
• Collaborative Environments: Supporting features like collaborative whiteboarding or simultaneous document editing.
• Telehealth: Connecting patients and providers securely over a web browser for virtual appointments. Provides end-to-end encrypted communication.
• Gaming and Esports: Enabling players to collaborate and providing low-latency streaming for live gaming events.
• Internet of Things (IoT): Helpful for real-time data exchange, such as streaming video/audio from drones or surveillance cameras.

What is WebSockets?

WebSockets is a technology that enables bidirectional, full-duplex communication between client and server over a persistent, single-socket connection. Unlike the traditional HTTP request/response model where the client initiates every interaction, WebSockets allow both the client and the server to send messages to each other at any time, without the client explicitly requesting data.

The WebSocket technology consists of two core building blocks: the WebSocket protocol and the WebSocket API. A WebSocket connection starts as an HTTP request/response handshake; beyond this handshake, WebSocket and HTTP are fundamentally different. Once the connection is established, it remains open, allowing for efficient, low-latency data exchange with minimal overhead per message. WebSockets are a stateful protocol, meaning the server and client remain active until one party terminates the connection.

How WebSockets Work:

Communication begins with an HTTP/1.1 request/response exchange, known as the opening handshake, where the client requests to upgrade the connection from HTTP to WebSockets. If the server agrees, it returns an HTTP 101 Switching Protocols response. After the handshake, the connection becomes a persistent, full-duplex channel. Data is transferred back and forth in conceptual units called messages, which can consist of one or more frames.

[[NEWSLETTER]]

WebSockets operate on a single, persistent TCP connection. This is a key difference compared to WebRTC's common use of UDP for media. TCP provides reliable delivery (guaranteed ordering and delivery), which is important for many types of data where losing packets is not acceptable.

WebSockets Use Cases:

WebSockets are excellent for architecting event-driven systems and building realtime apps and services where it's essential for data to be delivered immediately. Use cases include:

• Real-Time Chat Applications: Delivering instant messages in live chat systems, social media platforms, gaming chat apps, and customer support tools.
• Data Broadcast: Providing real-time updates for things like live sports scores, stock market updates, and news alerts.
• Data Synchronization: Enabling live updates in online polls, quizzes, collaborative databases, shared documents, whiteboards, and presentations.
• In-App Alerts and Notifications: Providing event-driven notifications and alerts.

WebRTC vs WebSockets: What Are the Differences?

While both technologies facilitate real-time communication, their core designs and primary use cases differ significantly.

• Communication Model: WebRTC is designed for peer-to-peer communication, enabling direct connections between browsers/devices. WebSockets are designed for client-server communication, establishing a persistent connection between a client (like a browser) and a server.
• Primary Purpose: WebRTC is primarily focused on real-time media (audio and video) streaming and peer-to-peer data transfer. WebSockets are primarily for general bidirectional data exchange between a client and a server.
• Transport Protocol: WebRTC typically uses UDP for media streams due to its speed, even though it's less reliable (best effort delivery). It can use TCP for the data channel or TURN relays. WebSockets use TCP, which provides reliable, ordered delivery.
• Server Involvement (Post-Setup): After the initial setup, WebRTC allows media and data to flow directly between peers, often bypassing intermediary servers for the stream itself. WebSockets always involve a server to relay messages between clients or handle server-side logic.
• Signaling: WebRTC needs a signaling mechanism to set up peer connections but does not define its own. WebSockets are a common and efficient choice for implementing WebRTC signaling.
• Overhead: WebSockets have moderate overhead for the initial handshake but minimal overhead per message. WebRTC also has moderate overhead for connection establishment, then minimal per message.

In summary, WebRTC is built for direct peer-to-peer multimedia communication and data transfer with low latency, often leveraging UDP, while WebSockets are built for reliable, bidirectional data transfer between a client and a server over a persistent TCP connection.

When to Use WebRTC vs WebSockets

Choosing between WebRTC and WebSockets depends entirely on your application's requirements.

Use WebRTC when:

• You need to build peer-to-peer video or audio communication applications like video conferencing, voice calls, or live streaming where low latency is critical.
• You need to transfer significant amounts of data directly between peers with low latency (e.g., file sharing, gaming data).
• You want to reduce server load and latency by enabling direct communication pathways between users for media or data streams after the initial connection setup.
• Privacy and security are paramount for the peer-to-peer stream, as WebRTC provides built-in encryption.
• Your application involves interactive streaming or live events requiring minimal delay.

Use WebSockets when:

• You need real-time data exchange between a client and a server.
• Your application relies on reliable, ordered message delivery between the client and the server (e.g., chat messages, notifications, data synchronization).
• You need to implement a signaling mechanism for WebRTC connections.
• You have server-to-client push scenarios such as live updates, dashboards, or alerts.
• You are building applications that require bidirectional communication without the need for direct peer-to-peer media streams.

Combining WebRTC and WebSockets:

As mentioned, WebRTC requires signaling, and WebSockets are an excellent tool for this. In many complex real-time applications, you will find WebRTC and WebSockets working together. WebSockets can handle the signaling process (exchanging information to set up the connection) and potentially other server-relay data, while WebRTC handles the direct peer-to-peer media and large data streams. This allows you to leverage the strengths of both technologies.

Code Examples (JavaScript)

Here are some basic JavaScript examples demonstrating how to instantiate and use the core APIs for WebSockets and WebRTC.

WebSocket Client Example:

This code snippet shows how to establish a WebSocket connection from a web browser and handle basic events like opening, receiving messages, errors, and closing.

// Create WebSocket connection.
// Use 'wss' for secure connections over TLS, analogous to 'https'.
const socket = new WebSocket('wss://example.com/socketserver'); // Replace with your WebSocket server URL

// Connection opened
socket.onopen = function(event) {
  console.log('WebSocket connection established!'); // Event fires when handshake is successful
  socket.send('Hello Server!'); // Send a message to the server
};

// Listen for messages
socket.onmessage = function(event) {
  console.log('Message from server:', event.data); // Handles incoming data (string or binary)
  // Check data type if needed (e.g., for binary data)
  if (event.data instanceof ArrayBuffer) {
    console.log('Received binary data');
    // Process binary data
  } else {
    console.log('Received text data:', event.data);
    // Process text data
  }
};

// Handle errors
socket.onerror = function(error) {
  console.error('WebSocket Error:', error); // Event fires on error
};

// Connection closed
socket.onclose = function(event) {
  if (event.wasClean) {
    console.log(`WebSocket connection closed cleanly, code=${event.code} reason=${event.reason}`); // Event fires when connection is closed
  } else {
    // e.g. server process killed or network down
    console.error('WebSocket connection died');
  }
};

// To send a message later:
// socket.send('Another message!');

// To close the connection:
// socket.close(); // Initiates the closing handshake

Note: This is a client-side example. Building a WebSocket server requires server-side code (e.g., using Node.js and a library like ws or SockJS).

WebRTC DataChannel Example:

This snippet shows how to create a RTCPeerConnection and an RTCDataChannel. Note that this example focuses on the API structure similar to WebSockets and does not include the complex signaling required to actually connect two peers.

// Create an RTCPeerConnection.
// Configuration includes ICE servers (STUN/TURN) needed for NAT traversal.
// This config is crucial but omitted for simplicity here.
const peerConnection = new RTCPeerConnection(/* Optional Configuration */); // Core of WebRTC, handles peer connection

// Create a data channel.
// 'myDataChannel' is a label for the channel. Options can be specified.
const dataChannel = peerConnection.createDataChannel("myDataChannel"/*, dataChannelOptions*/); // Allows bidirectional data transfer

// Data channel events are similar to WebSocket events.
dataChannel.onopen = function(event) {
  console.log('Data channel is open!'); // Event fires when the channel is ready to send data
  dataChannel.send('Hello Peer!'); // Send data through the channel
  // Data can be String, Blob, or ArrayBuffer.
  // dataChannel.send(new ArrayBuffer(128));
  // dataChannel.send(new Blob(['binary data']));
};

dataChannel.onmessage = function(event) {
  console.log('Message from peer:', event.data); // Handles incoming data
  // event.data will be the received data (String, Blob, or ArrayBuffer)
};

dataChannel.onerror = function(error) {
  console.error('Data Channel Error:', error); // Event fires on error
};

dataChannel.onclose = function() {
  console.log('Data channel is closed.'); // Event fires when the channel is closed
};

// To close the data channel:
// dataChannel.close(); // Terminates the channel

// --- Important Note: Signaling is required! ---
// The above code only sets up the PeerConnection and DataChannel objects locally.
// To actually connect to another peer, you need to:
// 1. Generate an offer (SDP) from one peer.
// 2. Exchange this offer with the other peer (using a signaling server, e.g., via WebSockets).
// 3. The other peer generates an answer (SDP) based on the offer.
// 4. Exchange the answer back.
// 5. Exchange ICE candidates (network information) between peers (also via signaling).
// This negotiation process is complex and crucial for WebRTC connectivity.
// The RTCPeerConnection object has methods like createOffer(), createAnswer(), setLocalDescription(), setRemoteDescription(), and addIceCandidate() for this.
// A signaling server (often using WebSockets) is needed to relay this information between peers.

Conclusion

WebRTC and WebSockets are both powerful technologies for enabling real-time experiences on the web, but they are fundamentally different and designed for distinct purposes. WebRTC excels at direct peer-to-peer multimedia and low-latency data transfer, often bypassing servers for the media stream itself. WebSockets are ideal for reliable bidirectional data exchange between a client and a server.

In many modern real-time applications, these technologies are complementary, with WebSockets frequently used to handle the signaling needed to set up WebRTC peer connections. By understanding the strengths and weaknesses of each, developers can make informed decisions about which technology, or combination of technologies, is best suited to their specific project needs.
